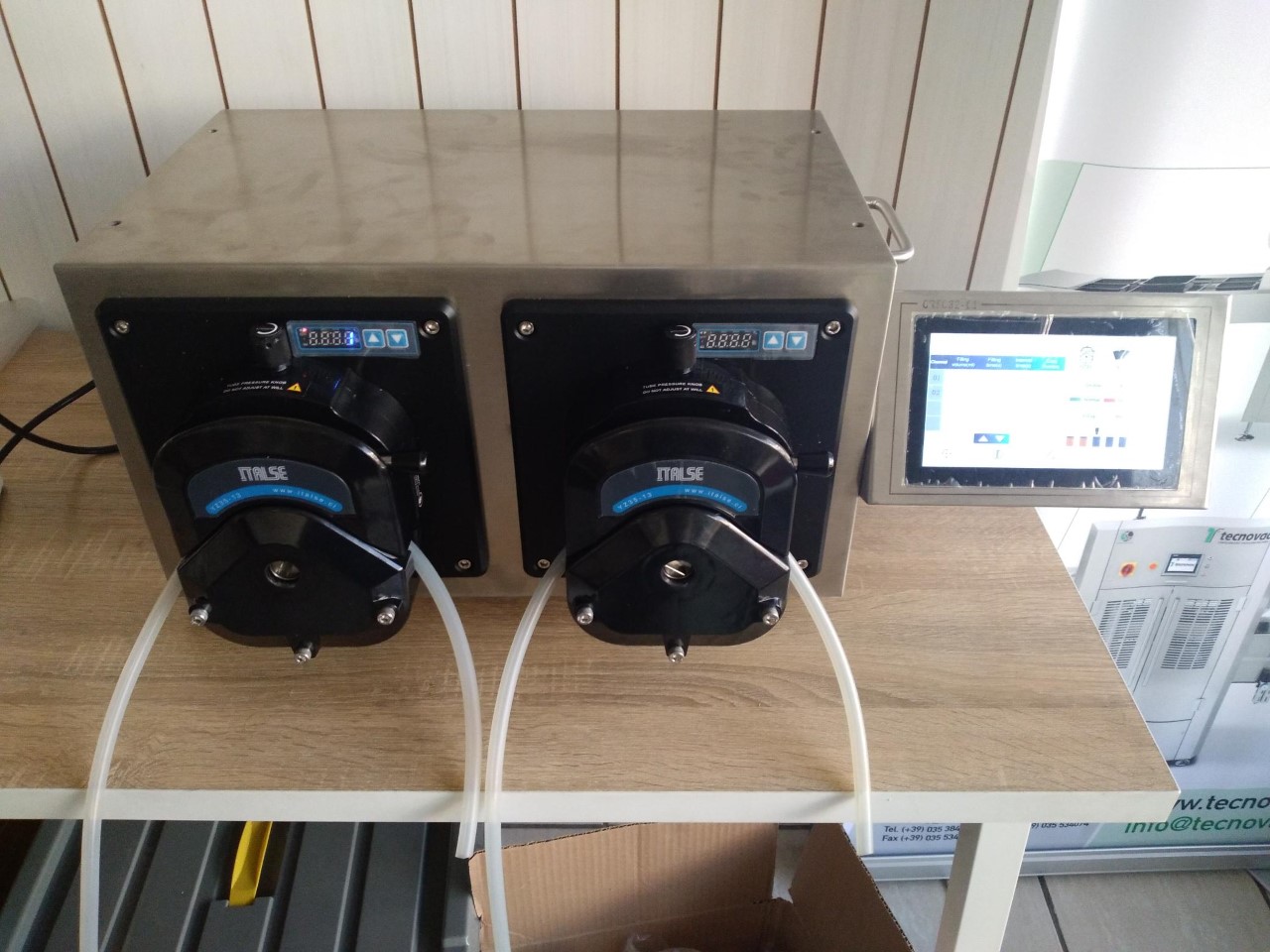

Dosificadora Multicanal Bomba Peristáltica IF2000
Dosificadora Multicanal Bomba Peristáltica IF2000
Llenadora líquidos viscosos de tecnología peristáltica alto rendimiento y rapidez multicanal de 2 cabezales o boquillas de llenado. Soluciona los problemas de imprecisión de las llenadoras de Pistón. Es fácil de limpiar y mantener. IDEAL PARA LABORATORIOS.
PRODUCTO EN STOCK.ENTREGA INMEDIATA 2 CABEZALES
CotizarCaracterísticas Principales
| Drive model | IF2-16LV | |
| Speed range | 0.1~600rpm（reversible） | |
| speed resolution | 0.1rpm | |
| Max Flow | 0.17~1740ml/min | |
| Filling Accuracy | ＜±0.5% | |
| Control Method | Touch screen+membrane keypad | |
| Display Mode | 5-inch color LCD (English) | |
| Filling volume range | 0.01-9999ml | |
| copy number range | 0~9999t “0” is infinite loop | |
| Filling time range | 0.1s ~ 9999 min, adjust the resolution to 0.1s | |
| Pause Time range | 0.1s ~ 9999 min | |
| Suckback angle | 10°~720° (1° Stepping) | |
| Suckback speed | 10~100rpm | 10~300rpm |
| Power supply | AC220V±10%(standard) | |
| External control | Need to contact manufacturer, it can be customized | |
| Environment Temperatur | Temperature 0 ~ 40 ℃, relative humidity < 80%, no condensation | |
| Drive size | 870×210×186（mm） | |
| Drive weight | 21.8kg | |
| Motor type | Stepper motor | |
| IP grade | IP31 | |
| Working mode | Transmission mode | |
| External control interface | DB-15 | |
